13ft and 10ft Subsea Basket Manufacturing Process from Design to Delivery.

banner
News

New Order For Subsea Baskets from one of our Norwegian Client : 2 pcs 3M Baskets, 3 pcs 4M Baskets for Delivery before June 25.Update will follow.
March 25, 2025

New type of subsea basket

Introduction:

Each subsea basket is more than just a steel structure;  it represents precision engineering, skilled fabrication, and strict adherence to offshore standards.

Here's a glimpse into the manufacturing process of Sinortek's  3 pcs 4M(13ft) and 2 pcs 3M(10ft) approved and certified subsea baskets, providing a behind-the-scenes look at its creation, from initial design to final shipment.

This is our effort to describe the full journey, from order receipt to delivery.


3M Subsea Basket Drawing

false

4M Subsea Basket Drawing

Process 1: Laser Cutting

5

Programming operation


Thickness of steel 355B: 12 mm/16mm/20mm


13

Hanslaser cutting machine

Thickness: 30mm max

Machine power: 12,000 watts


Laser Cutting Speed: 1.2 m/min, 0.9m/min, 0.6m/min


Table size: 6000mm by 2500mm

Thickness: 0-30mm


Process 2: Bending forklift channel

Bending the forklift channel


Bending the forklift channel


Process 3: Checking

false

Check R3


Process 4: Welding

Spot welding the basket


Full welding basket


焊缝

Welding seam


Process 5: Boom installation and welding

Boom installation


2

Boom welding


Process 6: Loading Test

 3M/4M Subsea Baskets Loading Test.

  5pcs finished, and the loading test qualified.


Process 7: Sandblasting


打砂2

  The rust removal grade is Sa2.5


Process 8: Welding Quality Checking

false

MT Checking

UT Checking


Final process: Production finished

未标题-2

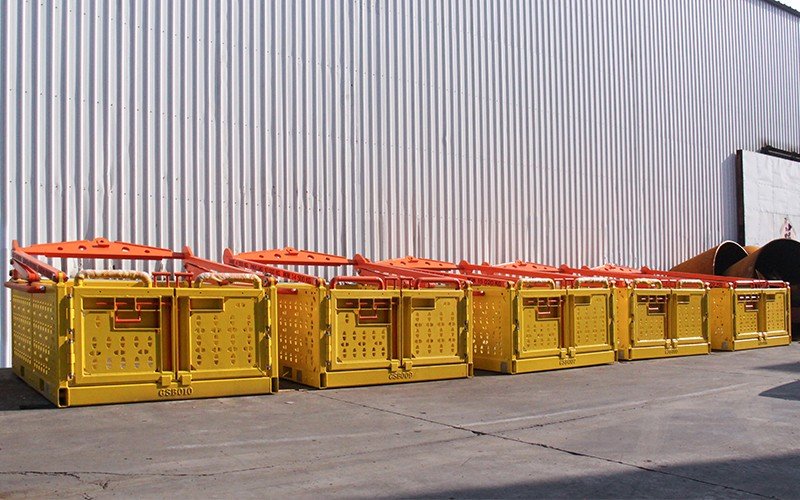

Shipment ready




With the successful completion of five fully assembled and load-tested 4M(13ft) and 3M(10ft) subsea baskets, we've just wrapped up another custom offshore project.

From the initial concept to final delivery, we remain dedicated to providing high-quality solutions that meet the most stringent offshore standards.

Contact us for more information on how we can support your offshore needs.
